Description

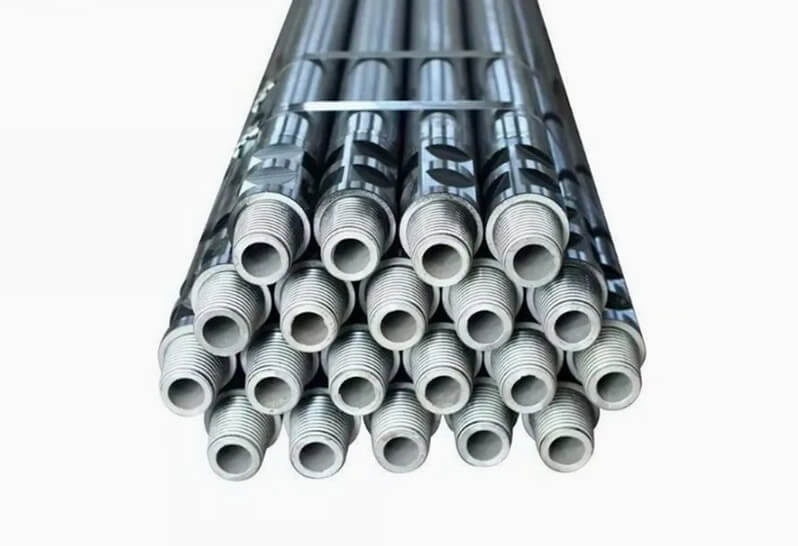

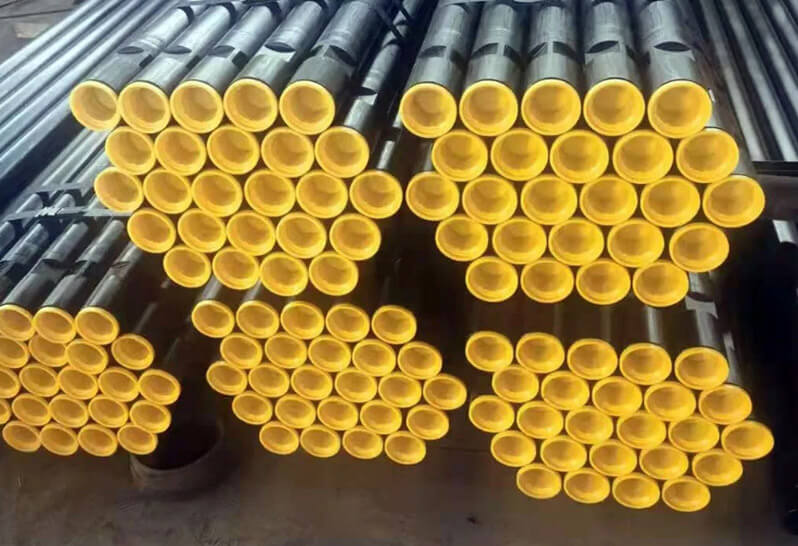

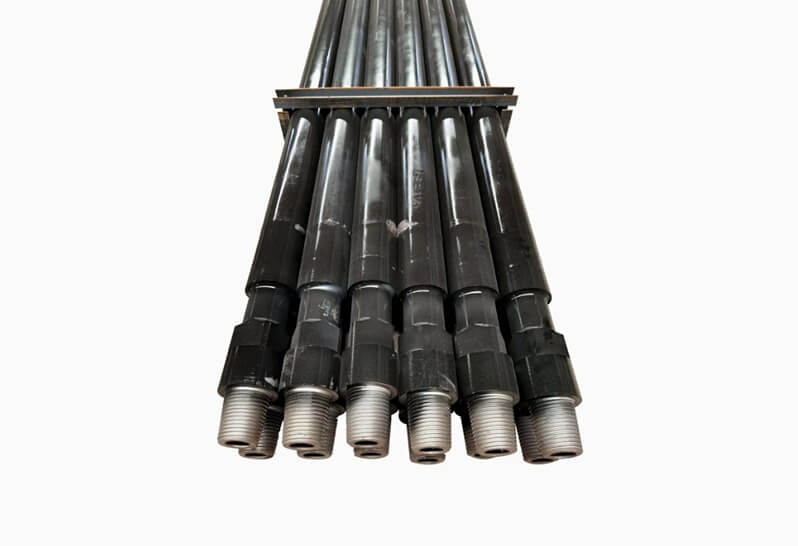

Drill pipe is a crucial component in various drilling operations. Constructed from high-quality steel, our drill pipe offers exceptional durability and strength. With a wide range of outer diameters and carefully engineered wall thicknesses, it can meet the diverse needs of different drilling applications.

We offer drill pipe in different steel grades, including E75, X95, G105 and S135, ensuring optimal performance for various drilling conditions. The threaded connections are precisely designed for a secure and reliable fit within the drill string.

Application

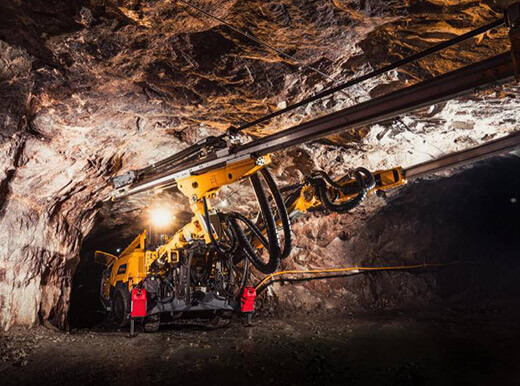

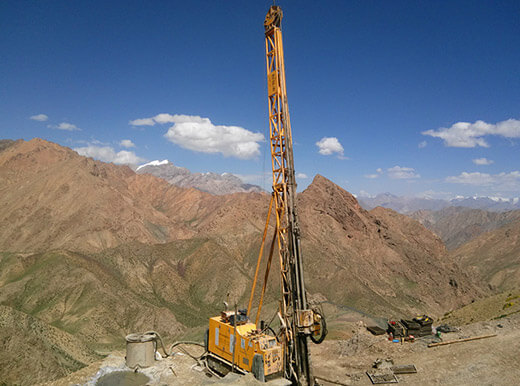

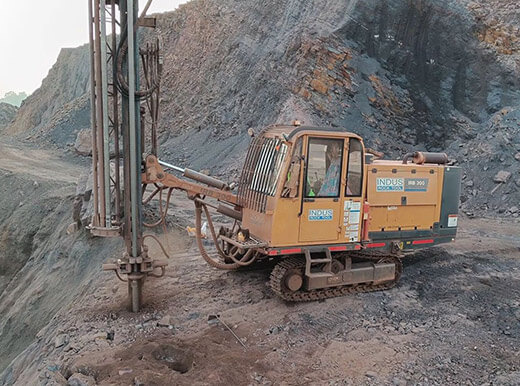

• Exploration and exploitation of mineral resources: exploration of metallic and non-metallic ores, development of oil and gas fields, adaptation to complex formations (such as hard rock, fracture zone), high wear resistance and strength of drill pipe.

• Hydrogeological survey and well construction: groundwater investigation and monitoring, water well drilling, drill pipe corrosion resistance, good stability (groundwater may contain minerals or chemicals), and can adapt to the drilling needs of different aquifers.

• Engineering Geological Survey: Construction foundation investigation and tunnel and underground engineering exploration, drill pipe has good torsional resistance to cope with the needs of long-distance horizontal or inclined drilling.

• Other application：Landslide and slope control, ground hazard monitoring drilling, pile foundation engineering, geothermal development, etc

Specifications

Pipe OD		Grade	Welding form	Thread type	Wall thickness		Joint OD		Length	torque	Min bending radius	Right-angle bending length	Max bending Angle	Max Angle of inclination
in	mm				in	mm	in	mm	mm	Nm	m	m		%
1.98	50	S135	Friction welding	50	0.25 6	6.5	2.1	53	2000	3000	32	50	3.6	6
1.98	50	S135	Friction welding	50	0.25 6	6.5	2.1	53	2500	3000	29	46	4.9	8
1.98	50	S135	Friction welding	50	0.25 6	6.5	2.1	53	3000	3000	29	46	5.9	10
2.375	60	S135	Friction welding	60	0.27 9	7.1	2.6 8	68	2000	6500	33	52	3.5	6
2.375	60	S135	Friction welding	60	0.27 9	7.1	2.6 8	68	2500	6500	33	52	4.3	7
2.375	60	S135	Friction welding	60	0.27 9	7.1	2.6 8	68	3000	6500	33	52	5.2	9
2.875	73	S135	Friction welding	NC23	0.31 5	8	3.2 1	82	3000	1300	45	71	3.8	6
										0
2.875	73	S135	Friction welding	NC23	0.31 5	8	3.2 1	82	4000	1300	45	71	5.1	9
										0
3	76	S135	Friction welding	NC26	0.35 5	9	3.4 5	88	3000	1600	45	71	3.8	6
										0
3	76	S135	Friction welding	NC26	0.35 5	9	3.4 5	88	4500	1600	45	71	5.7	10
										0
3.25	83	S135	Friction welding	83	0.35 5	9	3.6 3	92	3000	1800	65	102	2.6	4
										0
3.25	83	S135	Friction welding	83	0.35 5	9	3.6 3	92	4500	1800	65	102	4	7
										0
3.5	89	S135	Friction welding	NC31	0.36 8	9.35	4.1 5	105	3000	2400	85	133	2	3
										0
3.5	89	S135	Friction welding	NC31	0.36 8	9.35	4.1 5	105	4500	2400	80	126	3.2	5
										0
3.5	89	S135	Friction welding	NC31	0.36 8	9.19	4.1 5	105	6000	2400	80	126	4.3	7
										0
4	102	S135	Friction welding	NC38	0.36 2	9.19	5	127	6000	4800	98	154	3.5	6
										0
4.5	114	S135	Friction welding	NC38	0.36 2	9.19	5	127	6000	6400	110	173	3.1	5
										0
4.5	114	S135	Friction welding	NC46	0.36 2	9.19	6.1 8	157	6000	6400	110	173	3.1	5
										0
